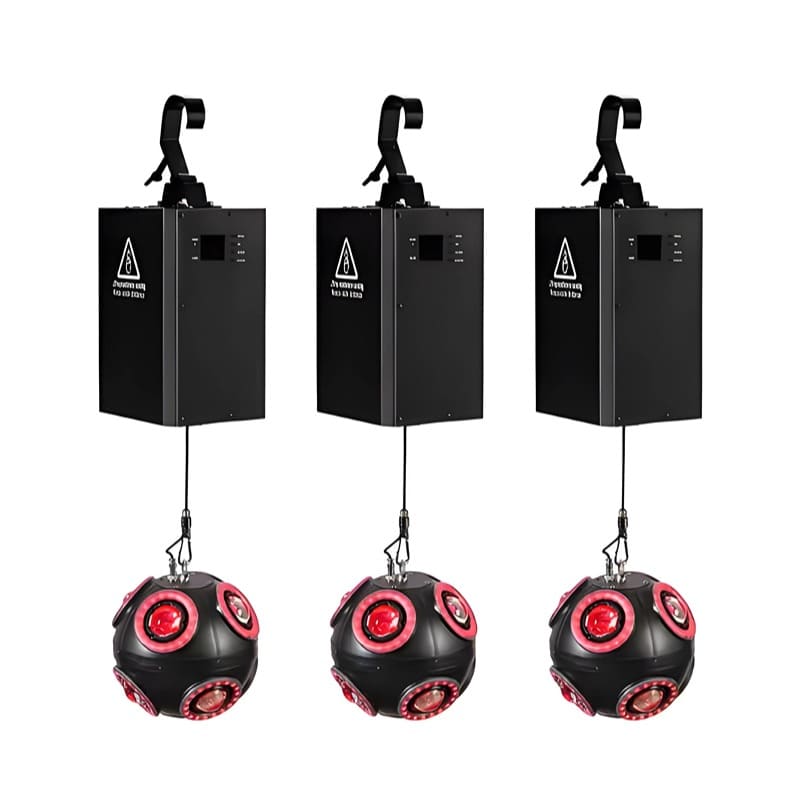

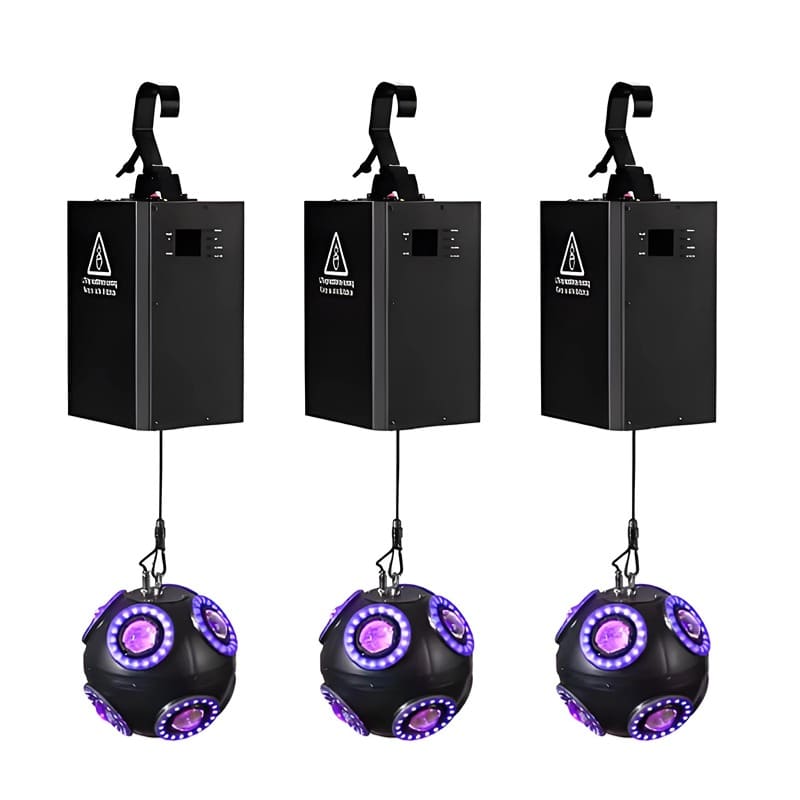

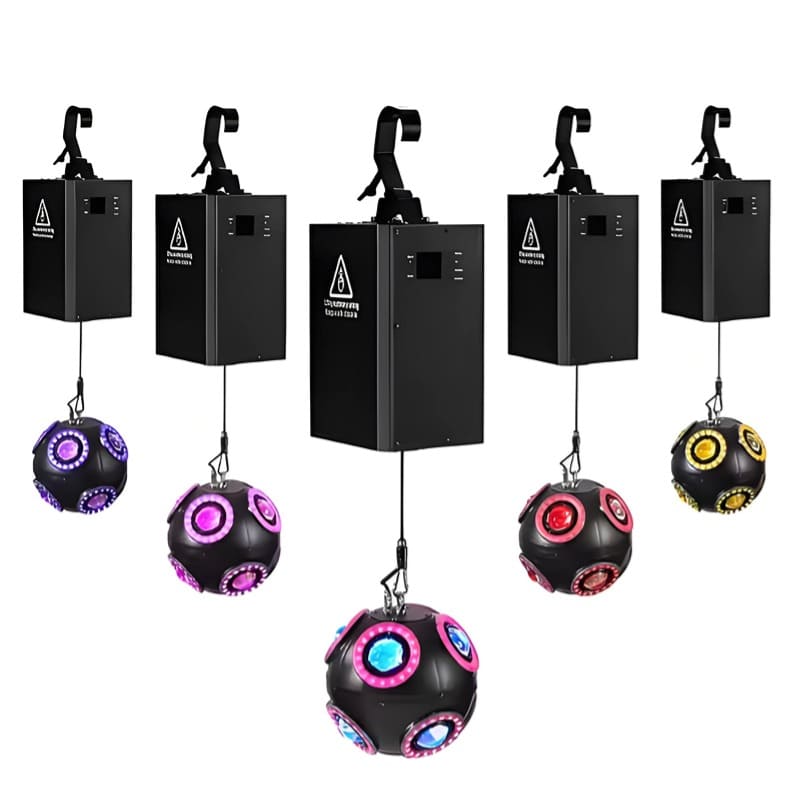

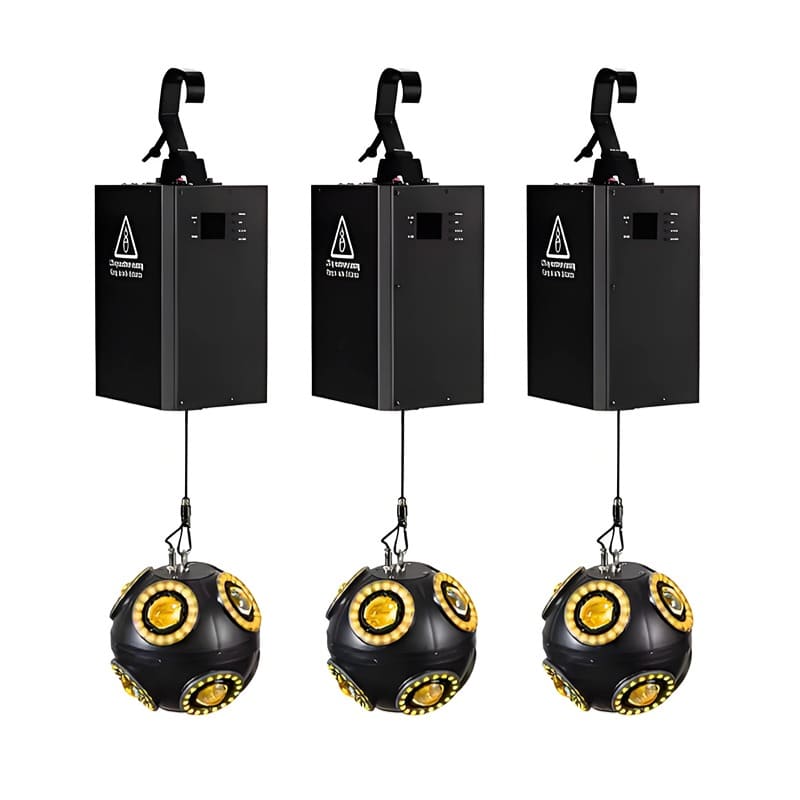

LED Kinetic Football Light – Lifting DMX RGB Ball

LED Kinetic Football Light – DMX RGB Lifting Ball for Stage & Events

Product Overview

The LED Kinetic Football Light is a cutting-edge lighting fixture designed for dynamic, high-impact visual presentations. Featuring RGB color mixing and DMX-controlled vertical movement, this lifting ball light creates mesmerizing effects perfect for modern stage and event lighting. Whether you’re planning a concert, wedding, or nightclub installation, this kinetic light delivers performance, flexibility, and stunning results.

Key Features

Vibrant RGB 3-in-1 LED color mixing
Smooth, programmable vertical lifting via winch
DMX-512 compatibility for precise show control
Multiple operation modes: Auto, DMX, Sound, Master-Slave
Ideal for large-scale kinetic installations and single-unit use

Technical Specifications

Model: LED Kinetic Football Light
Light Source: High-brightness RGB LEDs
Power Consumption: 120W / 150W
Voltage: AC 90–240V, 50/60Hz
Control Mode: DMX-512 / Auto / Sound / Master-Slave
DMX Channels: 6 / 12 channels
Lifting Height: 0–3 meters (customizable)
Running Speed: 0.3 – 0.6 m/s adjustable
Load Capacity: Up to 2 kg
Ball Diameter: 20cm / 25cm / 30cm
Material: Polycarbonate (PC) housing
Effects: Dimming, strobe, color fade, wave motion
Cooling: Silent fan system
Certifications: CE, RoHS

Application Scenarios

Concerts & Music Festivals
Create synchronized lighting effects that move with the beat, enhancing audience engagement.
Weddings & Special Events
Add elegance and ambiance with soft, floating motion and color transitions.
Nightclubs & Entertainment Venues
Elevate nightlife environments with kinetic lighting that energizes the crowd.
Exhibitions & Trade Shows
Stand out with moving light elements that attract visitors and highlight installations.
Shopping Malls & Retail Spaces
Integrate into ceiling designs to create a futuristic retail experience.
Theaters & Performing Arts
Use programmable motion and light for dramatic stage effects.
Corporate Events & Product Launches
Align lighting effects with brand colors and themes for maximum visual impact.
